Transform your Gen3 F-150 Raptor's performance and stance with the ICON Vehicle Dynamics Stage 1 suspension system, engineered specifically for vehicles equipped with OE shock absorbers. The front coil springs utilize a linear spring rate for consistent performance and precise handling while delivering 2.25 Inch of front lift for standard Raptors and 2 inch for Raptor R models, ensuring an aggressive look and increased ground clearance.

Designed for seamless compatibility, they maintain full electronic shock functionality while enhancing your truck's capability and ride quality.

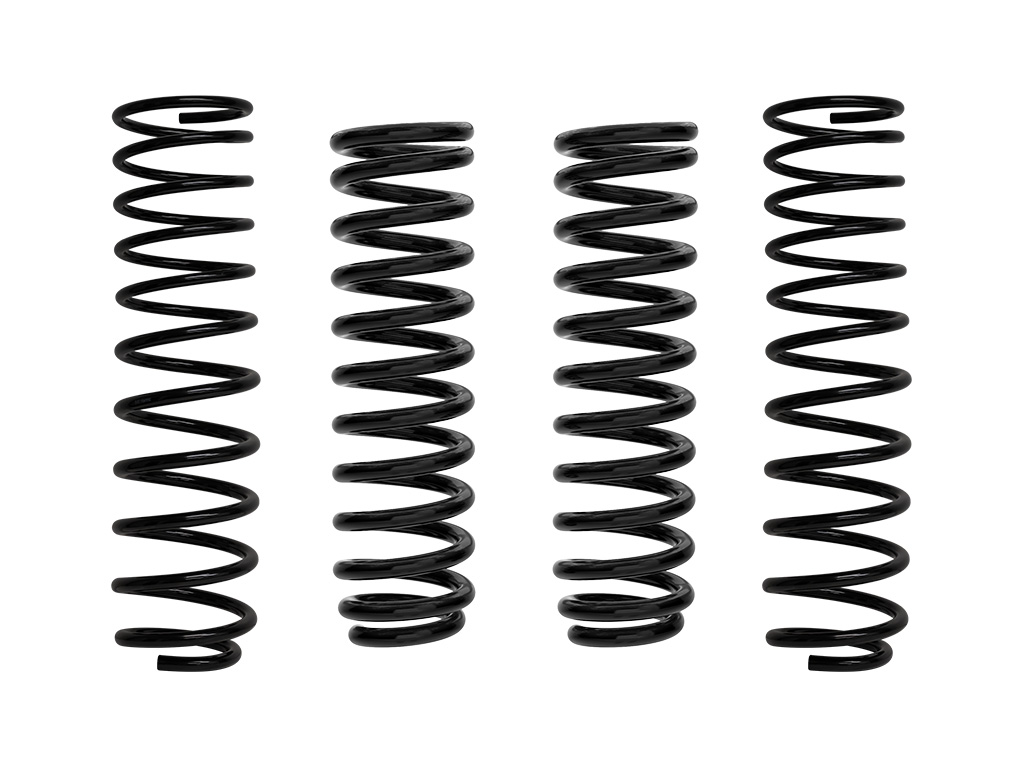

• The triple-rate rear coil springs are tailored to deliver a 1 inch lift on Raptors without additional rear weight. ICON-engineered droop, ride, and overload rates ensure optimal suspension performance across a variety of driving conditions. The performance ride rate balances comfort and compliance, while the overload rate enhances load handling and bottom-out resistance. For maximum articulation and efficiency, the rear coils feature a tapered wire design, providing exceptional droop travel and off-road capability.
• Built for both durability and ease of installation, these springs feature a dual-stage powder coating that protects against corrosion in any environment. Their bolt-on design eliminates the need for cutting or modifications, allowing for a straightforward install. Backed by a lifetime guarantee against sagging or breakage, these coil springs redefine your Raptor's on- and off-road performance, delivering unmatched reliability and confidence wherever the journey takes you.
• Vehicle specific design for the Gen3 F-150 Raptor equipped with OE shock absorbers
• Front coils yield 2.25 Inch front lift height over stock on Raptor or 2 inch of front lift on Raptor R
• Compatible with all versions of available OE shock absorbers
• Maintains electronic shock functionality
• Linear rate front coil springs
• 1 inch rear lift height over stock on Raptors without additional weight in the rear
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
• Performance ride rate for compliance and comfort, overload rate for load and bottom out resistance, extra soft initial rate for maximum droop travel
• Tapered wire rear coil design achieves maximum travel and efficiency
• Significantly improves on- and off-road ride quality and performance over stock
• Bolt-on installation with no cutting required
• Dual stage powder coating for maximum corrosion resistance
• Lifetime guarantee against sagging/breakage

• Bushings Included: No
• Coil Quantity Front: 2.0
• Coil Spring Color: Black
• Coil Spring Material: Steel
• Coils Quantity Front: 2.0
• Coils Quantity Rear: 2.0
• Front Spring Rate Type: Linear
• Grade Type: Performance
• Maximum Lift: 2.25 Inch
• Maximum Lift Front: 2.25 Inch
• Maximum Lift Height Front: 2.25 Inch
• Maximum Lift Height Rear: 1.0 Inch
• Maximum Lift Rear: 1.0 Inch
• Minimum Lift Front: 2.0 Inch
• Mounting Hardware Included: No
• Rear Spring Rate Type: Progressive Triple Rate
• Shocks Included: No
• Spring Color: Black
• Spring Material: Steel
• Add On Part: 98564Dj - 21-24 F-150 Raptor Billet UCA Dj Pro Kit
