Take your RAM 3500 to new heights with this 4.5 Inch lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arm relocation brackets to steering correction and rear lift to level the stance.

Get the look, performance, and capability your truck deserves with clearance for up to 37 Inch tires.
Quick Specs:

• Front Lift Height 4.5 Inch
• Rear Lift Height 3 Inch
• Material Steel
• Front Lift Method Radius Arm Drop
• Rear Lift Method Cast Blocks
• Lift Type Lift Kit
• Wheel Size 20 x 9
• Back Spacing 5.75 Inch
• Max Tire Size 37 x 12.5
• Wheel Size 2 17 x 9
• Back Spacing 2 5.75 Inch
• Max Tire Size 2 37 x 12.5
• Wheel Size 3 17 x 9
• Back Spacing 3 Inch4.5 Inch
• Max Tire Size 3 37 Inch x 12.5
• Finish Powdercoat
• Cutting Required No
• Accommodates Factory Wheels See Notes
• Welding Required No

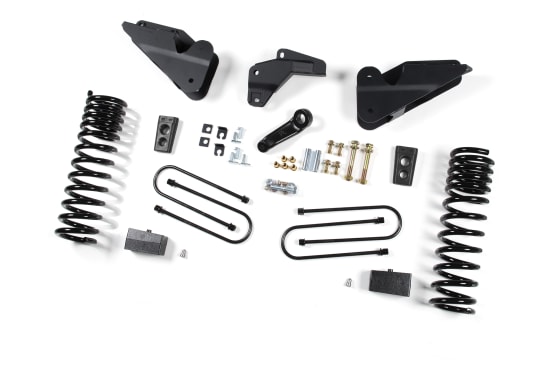

In The Box:

• All Necessary Mounting / Installation Hardware
• Bump Stops
• Coil Springs
• Dropped Pitman Arm
• Radius Arm Drop Brackets
• Rear Lift Block & U-Bolt Kit
• Sway Bar Relocation Brackets
• Track Bar Relocation Bracket

Features:

• Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance.
• Full length replacement coil springs add additional ride height while maintaining ride quality.
• High-strength control arm relocation brackets correct suspension geometry and add rigidity.

Kit Components:

• ZOND1207 Ram Rear 2 Inch Block Kit 4 Inch U-bolts 1 711745597969
• ZOND1401 13 3500/14 2500 Ram 4.5 Inch Front Box Kit 1 711745598027
• ZOND3401 2014-2024 Ram 2500 / 2013-2024 Ram 3500 Coils 4.5 Inch Diesel 5.5 Inch Gas 1 711745598560
• ZOND3402 13 3500/14 2500 Ram 4.5 Inch Coils-Pass Diesel 1 711745598577
